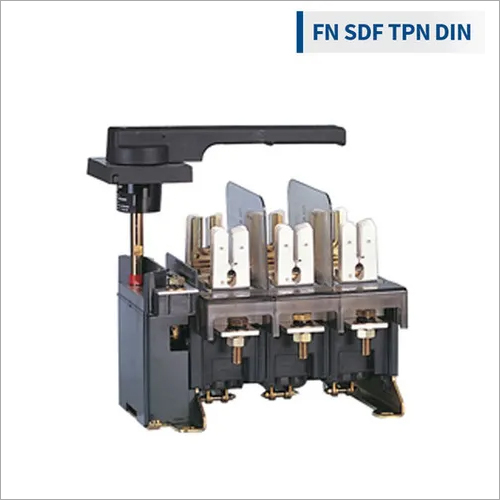

About Electrical Switch Disconnector Fuse
Range 32A to 800A, 415V, AC 23A
Conforms to IEC 60947-3, IS/IEC 60947-3
Terminal shrouds on both side and phase barriers included
Telescopic shaft for depth adjustment
TPN SDF has isolable neutral
4P SDF has Switched neutral pole and is 100% rated
Door interlock & padlock facility
Designed for High-Performance DistributionEngineered to meet rigorous standards (IEC 60947-3), this switch disconnector fuse is ideal for demanding environments such as distribution boards and control panels. Its IP65 protection ensures resilience against dust and moisture, while the use of durable polycarbonate and metal materials offers a long service life. With a 3-pole design and standardized panel mounting size, it adapts seamlessly to various installation needs.
Outstanding Electrical Safety FeaturesFeaturing a short-circuit withstand capacity of up to 100 kA (with fuse) and high insulation resistance (1000 M at 500V DC), this switch ensures maximum circuit safety. The device is further secured with a padlockable interlock mechanism in the OFF position, preventing unauthorized operation and enhancing workplace safety during maintenance procedures.
FAQs of Switch disconnector fuse:
Q: How is the switch disconnector fuse typically installed in an electrical system?
A: The switch disconnector fuse is designed for easy panel or DIN rail mounting, making it suitable for standard distribution boards and control panels. Its standardized dimensions (250mm x 70mm x 110mm) allow straightforward integration into new or existing systems.
Q: What is the main benefit of using a switch disconnector fuse with DIN type fuse links?
A: DIN type fuse links are widely recognized for their reliability and interchangeability. Their compatibility ensures consistent performance and simplifies replacement and maintenance, contributing to lower downtime and enhanced protection.
Q: Where can this switch disconnector fuse be used?
A: This product is suitable for use in environments such as commercial and industrial distribution boards, and control panels. Its robust design and IP65 protection level make it ideal for locations with high humidity (95% RH) and temperatures ranging from -25C to +60C.
Q: What safety features are incorporated into this switch disconnector fuse?
A: The device integrates a padlockable interlock in the OFF position for enhanced operational safety. It also includes high insulation and low contact resistance (2 m), ensuring safe circuit isolation and protection during maintenance.
Q: How does the manual operation benefit users of this switch disconnector fuse?
A: Manual operation allows precise control over circuit isolation, making it ideal for maintenance and safe disconnection without the need for automated systems. The clear red/yellow handle also provides easy visual indication of switch position.
Q: When should the fuse be replaced, and what is the process?
A: The fuse should be replaced if blown due to overcurrent or short circuit. Turn the switch off, ensure the system is isolated, remove the faulty DIN type fuse link, and insert a compatible replacement, maintaining full compliance with safety standards.
Q: What standards does this switch disconnector fuse comply with?
A: It is designed in accordance with IEC 60947-3, assuring users of its reliability, quality, and adherence to industry safety and performance norms.
